Boss DR-5 Wave File Sample Set

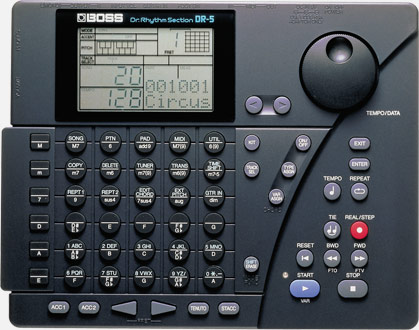

The Boss DR-5 Dr. Rhythm Section is a compact, digital 4-track composition tool released in 1993/1994, uniquely designed with an interface that mimics a guitar fretboard. Unlike standard drum machines, it functions as a "band-in-a-box" by providing programmable backing tracks for drums, bass, and two additional instrument tracks.
Key Features & Specifications
Sound Library: Features 256 16-bit percussion and instrument sounds, including 82 melodic instruments (pianos, guitars, etc.) and 174 drum sounds like the TR-808/909.
Fretboard Layout: Its 36 pads are arranged to represent the strings and frets of a guitar, making it intuitive for guitarists to input notes and chords.
Composition: Includes a 4-track sequencer with 200 preset and 200 user-programmable patterns, allowing for up to 20 songs.
Guitar Friendly: Features a dedicated 1/4" guitar input with a built-in tuner, amp simulator, and an "External Pitch" function to trigger internal sounds monophonically from a guitar.
Connectivity: Equipped with MIDI In/Out for external synchronization, stereo 1/4" outputs, a 3.5mm headphone jack, and a footswitch input for start/stop control.
Power: Operates on a 9V AC adapter or battery power for portability.
Performance Insights
Songwriting Powerhouse: It is highly regarded as a "mobile sketchbook" for songwriters, offering chord-based accompaniment and easy pattern chaining.
Iconic Sounds: The unit gained legendary status in underground rap (e.g., Memphis rap) for its specific choir patches and punchy 808-style drum kits.
User Interface: While innovative, the button-heavy interface and lack of touch-sensitive pads mean the Boss DR-5 Owner's Manual is often essential for mastering its functions.
Current Market Options
The Boss DR-5 is no longer in production, but used units are widely available on resale platforms:
Reverb: Listings typically range from $163 CAD to $499 CAD, depending on condition and whether the original power supply and manual are included.
eBay: Used units are often found for approximately $134 CAD to $177 CAD, frequently shipping from Japan.
